Product Overview

The IKING Drawn Arc Stud Welder for welding short-cycle studs, long-cycle DA studs, and CD Studs is designed for demanding industrial fastening applications where welding quality, efficiency, and reliability are critical.

What is Short Cycle Stud Welding?

Short cycle stud welding is a quicker form of the drawn arc stud welding process for attaching metal studs and other fasteners to metal sheets. It only takes from 10 to 100 milliseconds to attach the stud to the parent sheet using this method. CD weld studs can be used, but unlike CD stud welding, this process is suitable for use on slightly thicker sheet metals that are uneven or have imperfections. By bringing together elements of the DA and CD processes, Short Cycle proves to be a very effective method for applications where the parent material is thinner than what DA stud welding can tolerate, but you don’t require the full DA process to still get great results.

Short cycle is similar to drawn arc stud welding in many respects, as it requires three-phase power and a 415-volt power supply. However, this process is much faster and does not use a ferrule. Plus, the equipment and studs you can use for SC are much cheaper than those for DA. On the other hand, it can’t use weld studs as large as those used in Drawn Arc and is suited to thinner parent materials, so choosing SC stud welding really depends upon your setup!

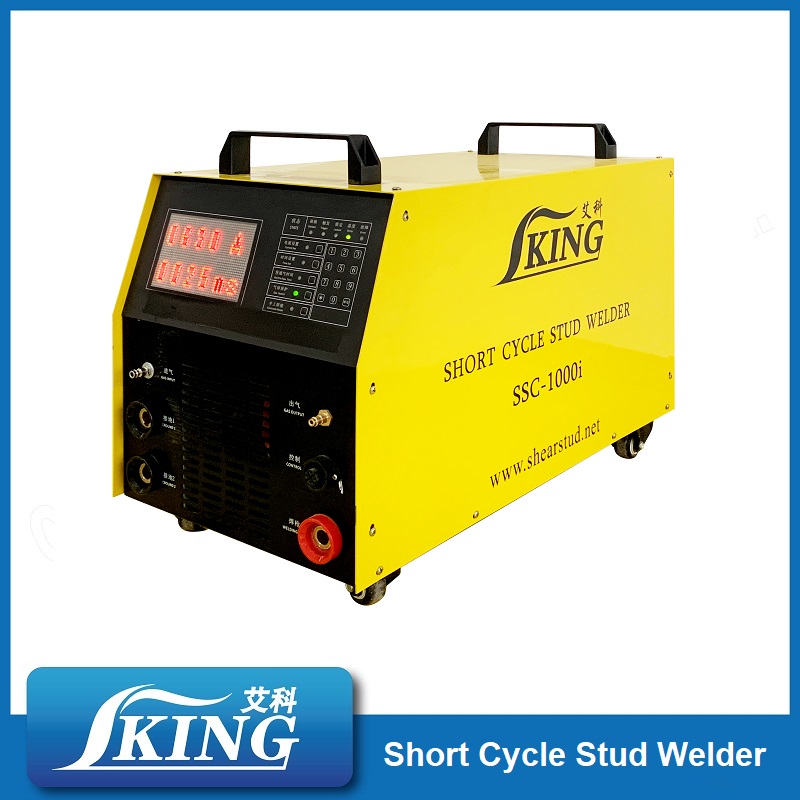

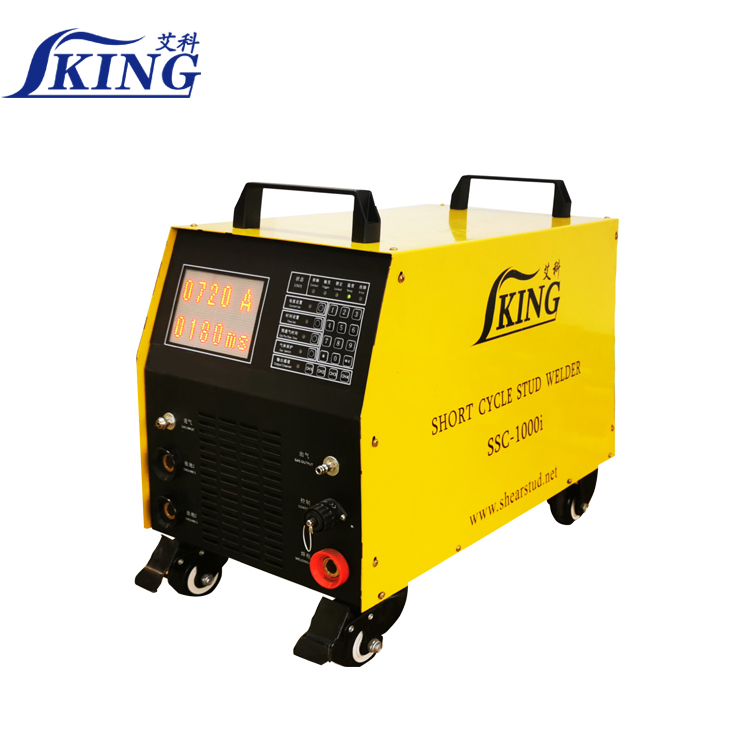

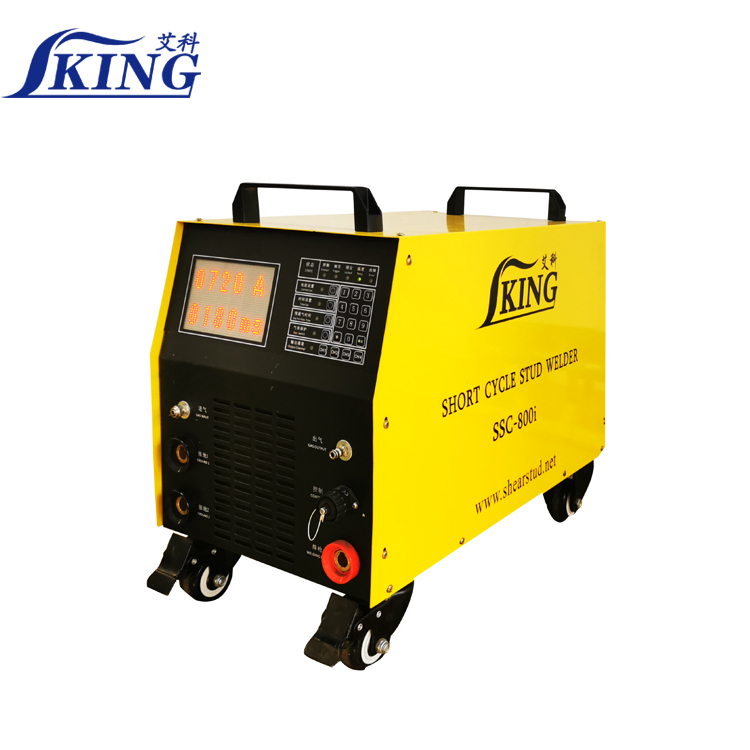

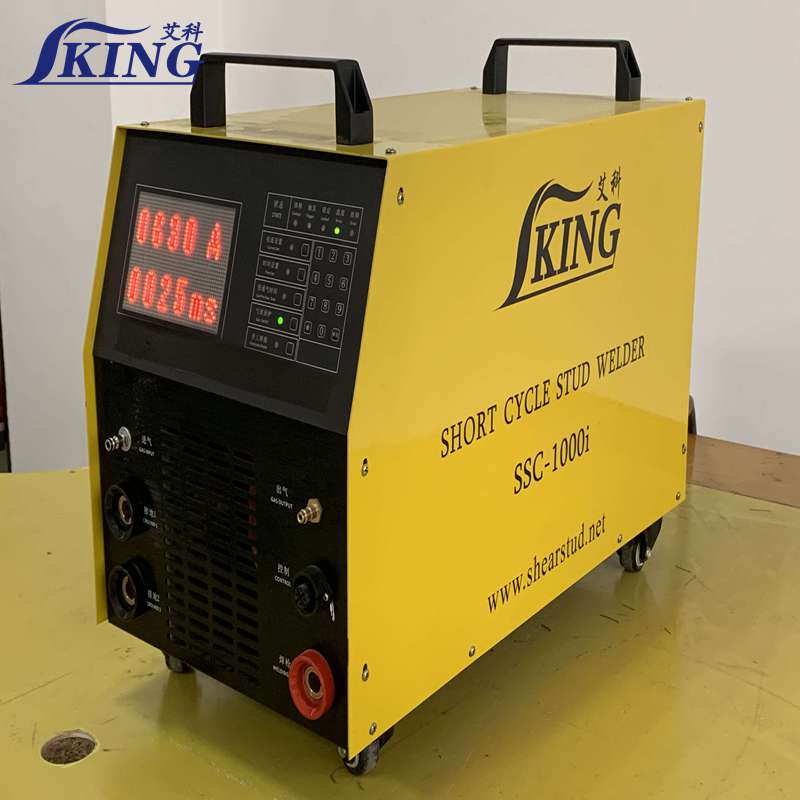

Drawn Arc Stud Welder For Welding Short Cycle Studs

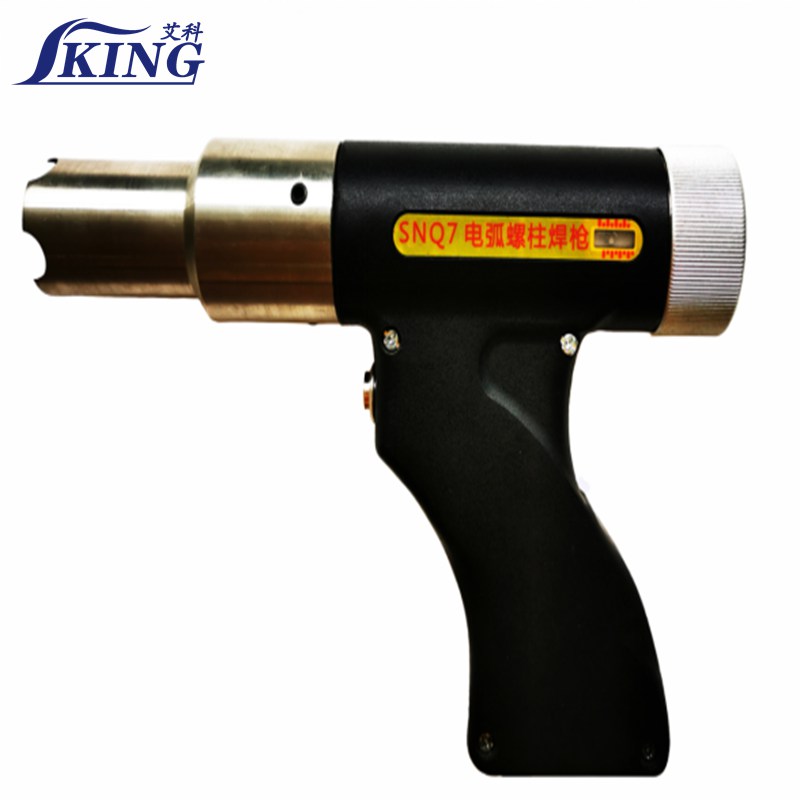

SSC-1000i PISTOL/GUN/TORCH Key Features

Available with a gas kit as standard

1.) For welding short cycle stud, welding range 3- 8 mm

2.) For welding gas-shielded type DA stud, welding range 3- 12 mm

3.)Constant 750 amp weld current

4.)Size: 325*265*480mm

5.)Weight: 52kg

6.)Welding stud range: 3- 12 mm,

7.)Length: 100mm or extended to any length based on customers' requirments.

Infinitely adjustable time

Customer Project Experience

A steel structure contractor in Southeast Asia was facing delays while installing threaded fasteners on large structural beams. Traditional fastening methods required extensive drilling and assembly work, slowing project progress and increasing labor costs.

After adopting the IKING Drawn Arc Stud Welder For Welding Short Cycle Studs, Long Cycle DA Studs And CD Studs, the contractor streamlined the fastening process. Stud installation time was significantly reduced, and welding consistency improved across the entire project.

The project manager commented:

"What impressed us most was the flexibility. We could weld different stud types with the same machine while maintaining stable welding quality throughout the project."

Why Choose IKING

Specialized Stud Welding Manufacturer

IKING focuses on:

• Stud Welding Equipment
• Drawn Arc Welding Systems
• Capacitor Discharge Welding Systems
• Welding Studs
• Shear Connectors
• Insulation Fasteners

Complete Fastening Solution Provider

Rather than supplying only equipment, IKING provides integrated stud welding solutions including:

• Welding Machines
• Welding Guns
• Welding Studs
• Ceramic Ferrules
• Insulation Fasteners
• Customized Fastening Products

Global Market Experience

Our products are exported to customers across:

• North America
• South America
• Middle East
• Southeast Asia
• Africa
• Australia

Providing dependable stud welding solutions for industrial applications worldwide.

FAQ

What stud types can this machine weld?

The machine supports short cycle studs, long cycle DA studs, and CD studs, as well as various threaded and special welding studs.

Is the machine suitable for structural steel fabrication?

Yes. It is specifically designed for steel structure fabrication, bridge construction, and heavy industrial applications.

Can one machine handle multiple welding processes?

Yes. The equipment is developed to support different stud welding applications, reducing the need for multiple welding systems.

What materials can be welded?

The machine can be used with carbon steel, stainless steel, and other commonly used welding stud materials.

Does IKING provide technical support?

Yes. IKING provides technical guidance, equipment support, and welding parameter recommendations for customers worldwide.
