CNC Stud Welding Machine

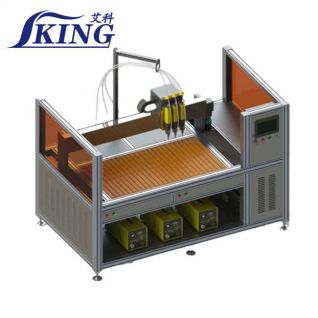

CNC stud welding amchine is a CNC entry-level model which ensure utmost accuracy, productivity and reliability in automatic stud welding applications. The particularly favourable price/efficiency ratio enables profitable operation even with low and medium-scale manufacture.
|
Project |
IK-LM-CN1320-3 (3 guns) |
IK-LM-CN1312-3 (3 guns) |
IK-LM-CN9060-3 (3 guns) |
|
Effective travel of machine tool |
2000 X 1300 X 130MM |
800 X 1300 X 130MM |
600 X 600 X 130MM |
|
Surrounding size of machine tool |
2500×3450×1750MM |
2100×2200×1750MM |
1500×1800×1750MM |
|
Percussion welder |
CDM9 * 1 unit (high-speed reinforced type) |
CDM9 * 1 unit (high-speed reinforced type) |
CDM9 * 1 unit (high-speed reinforced type) |
|
Automatic welding gun |
Three sets |
Three sets |
Three sets |
|
Automatic feeding system |
Three sets |
Three sets |
Three sets |
|
Drive motor |
HC1301 Absolute Serservomotor, 1300W / 750W |
HC1301 Absolute Serservomotor, 1300W / 750W |
HC1301 Absolute Serservomotor, 1300W / 750W |
|
Industrial control servo system |
IKING technology |
IKING technology |
IKING technology |
|
Maximum movement speed |
30m/min |
30m/min |
30m/min |
|
Repeat positioning accuracy |
±0.05 mm |
±0.05 mm |
±0.05 mm |
|
Silk rod / guide rail |
Taiwan TBI |
Taiwan TBI |
Taiwan TBI |
|
Lubricating device |
Three-wave manual oil injection device |
Three-wave manual oil injection device |
Three-wave manual oil injection device |
|
Source |
2Ph,50/60Hz,220VAC |
2Ph,50/60Hz,220VAC |
2Ph,50/60Hz,220VAC |
|
Aggregate capacity |
2.05kw + Welder |
2.05kw + Welder |
2.05kw + Welder |
|
Capacitive capacity |
33,000 F / individual |
33,000 F / individual |
33,000 F / individual |
|
Ring type sensor |
Dao chuan |
Dao chuan |
Dao chuan |
|
Air cylinder |
Yardker |
Yardker |
Yardker |
|
Pneumatic component |
Universal, Yardker |
Universal, Yardker |
Universal, Yardker |
|
Electric elements |
Schneider |
Schneider |
Schneider |
|
Weight of equipment |
2000KG |
1500KG |
960KG |
