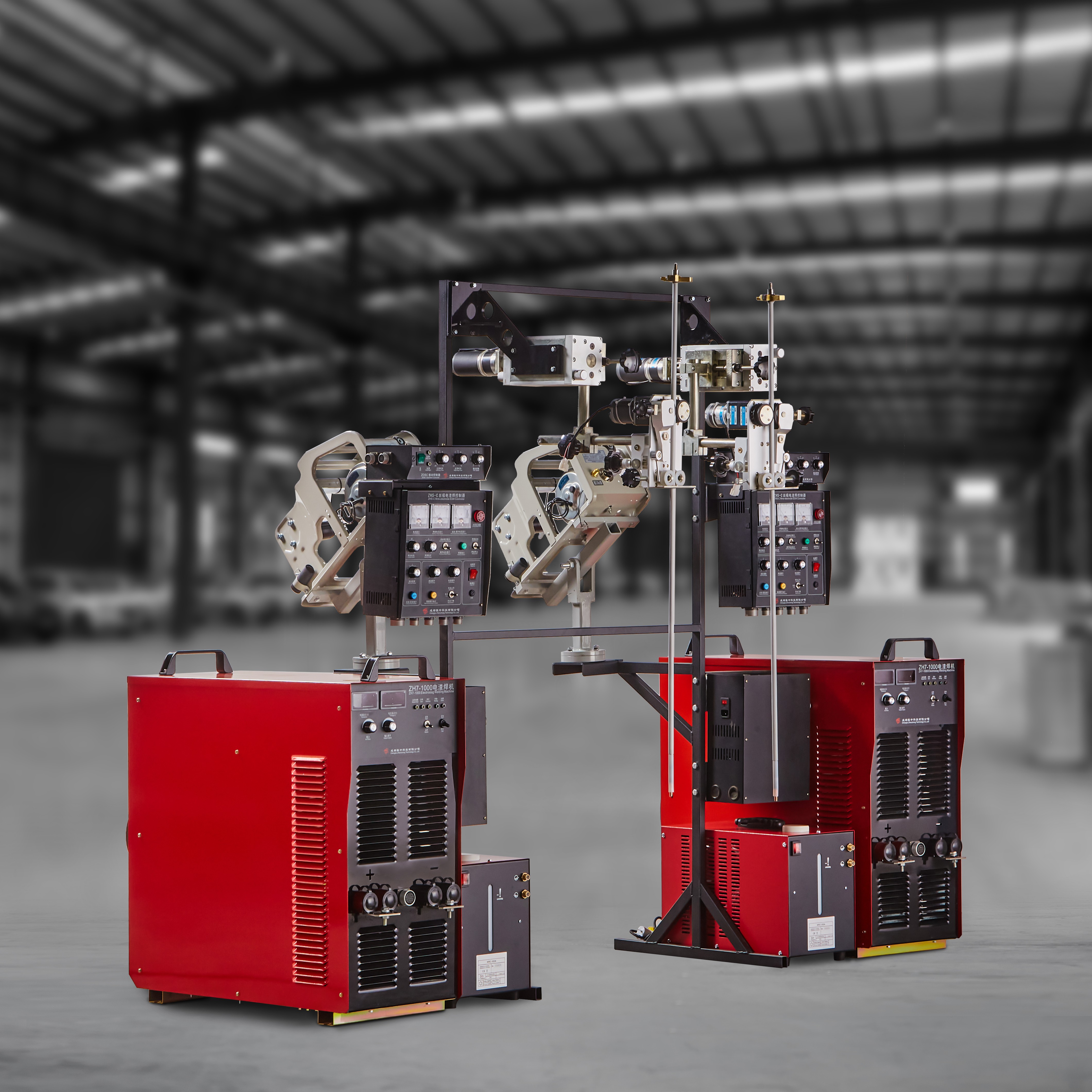

Electroslag Welding Machine

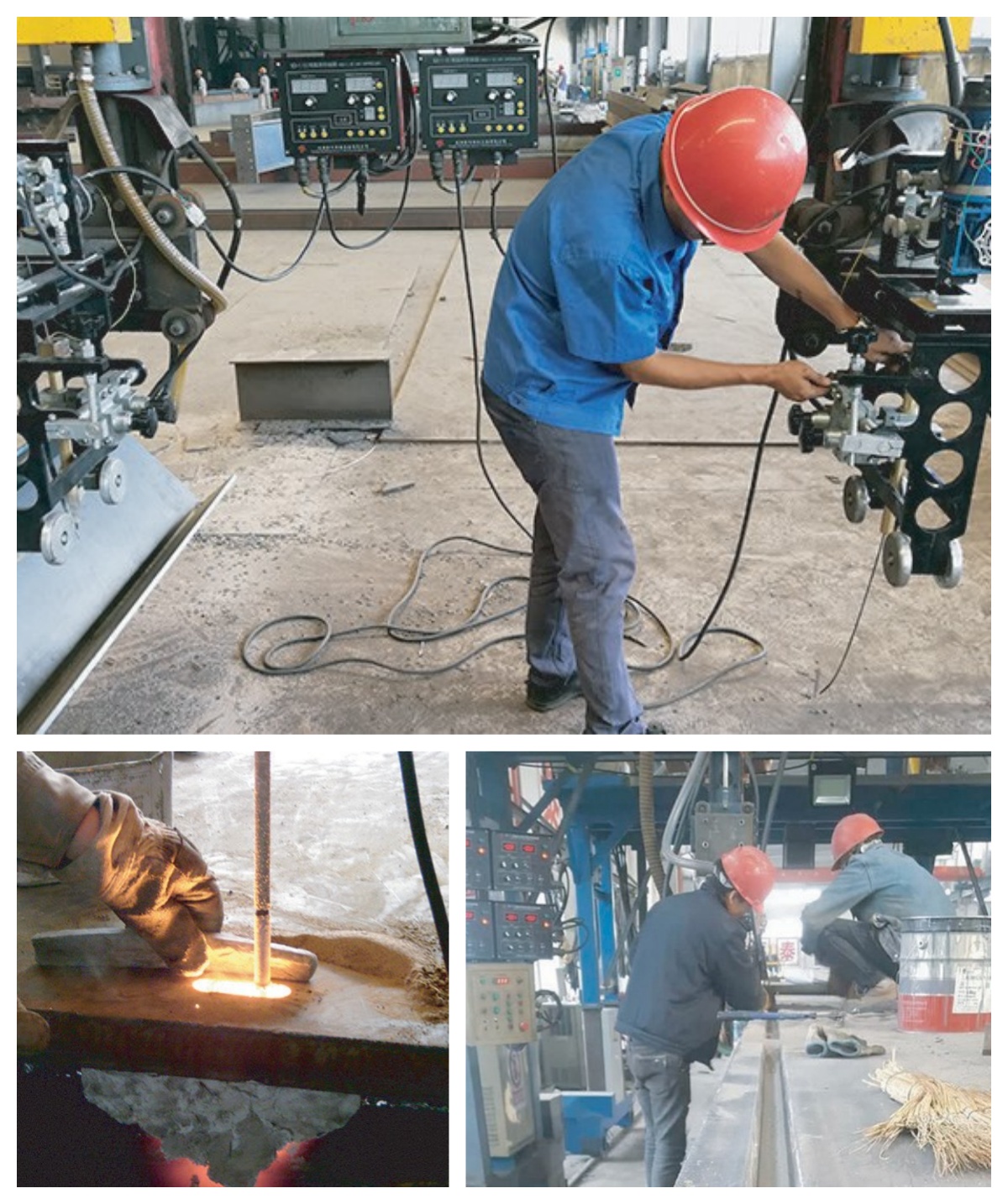

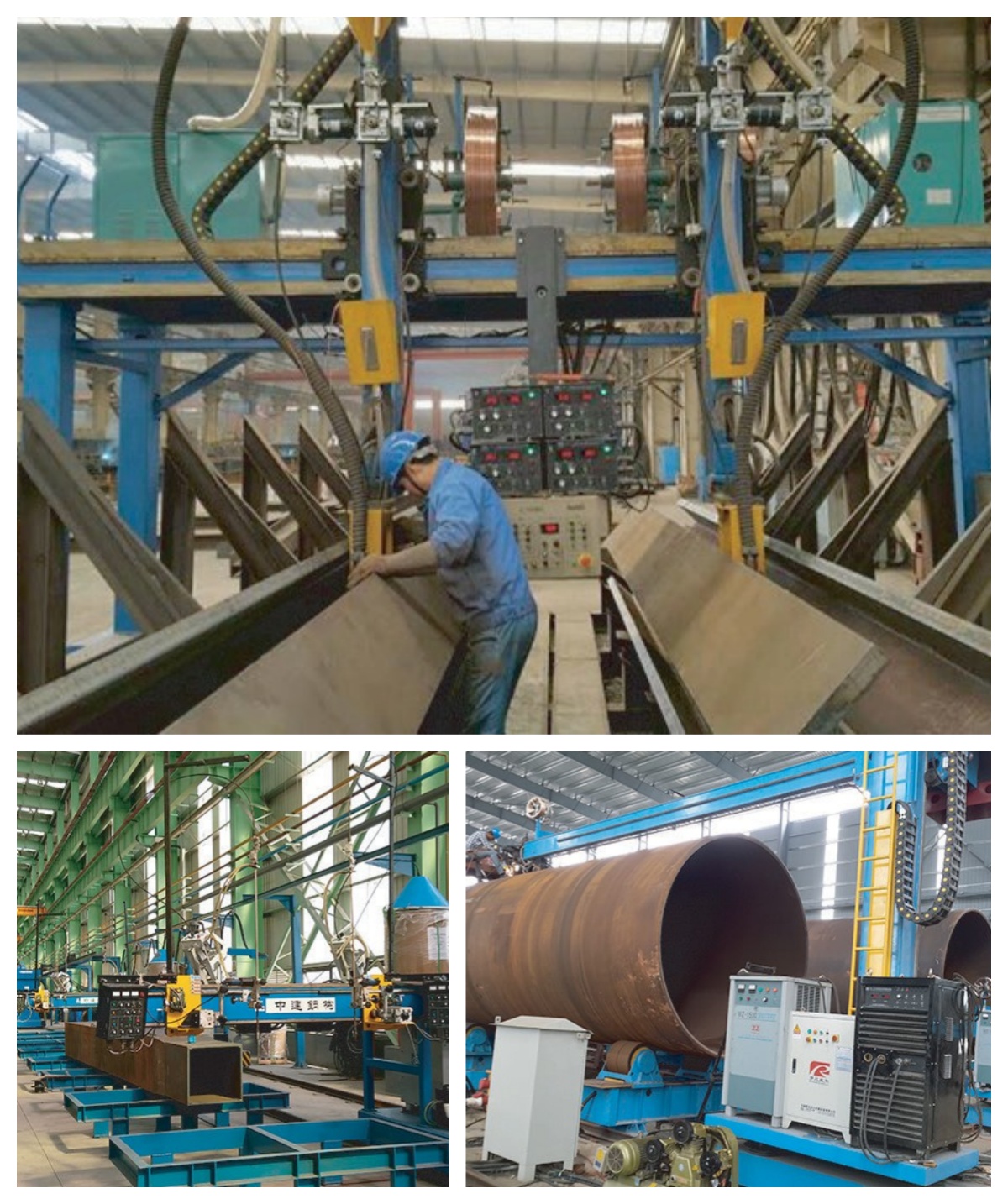

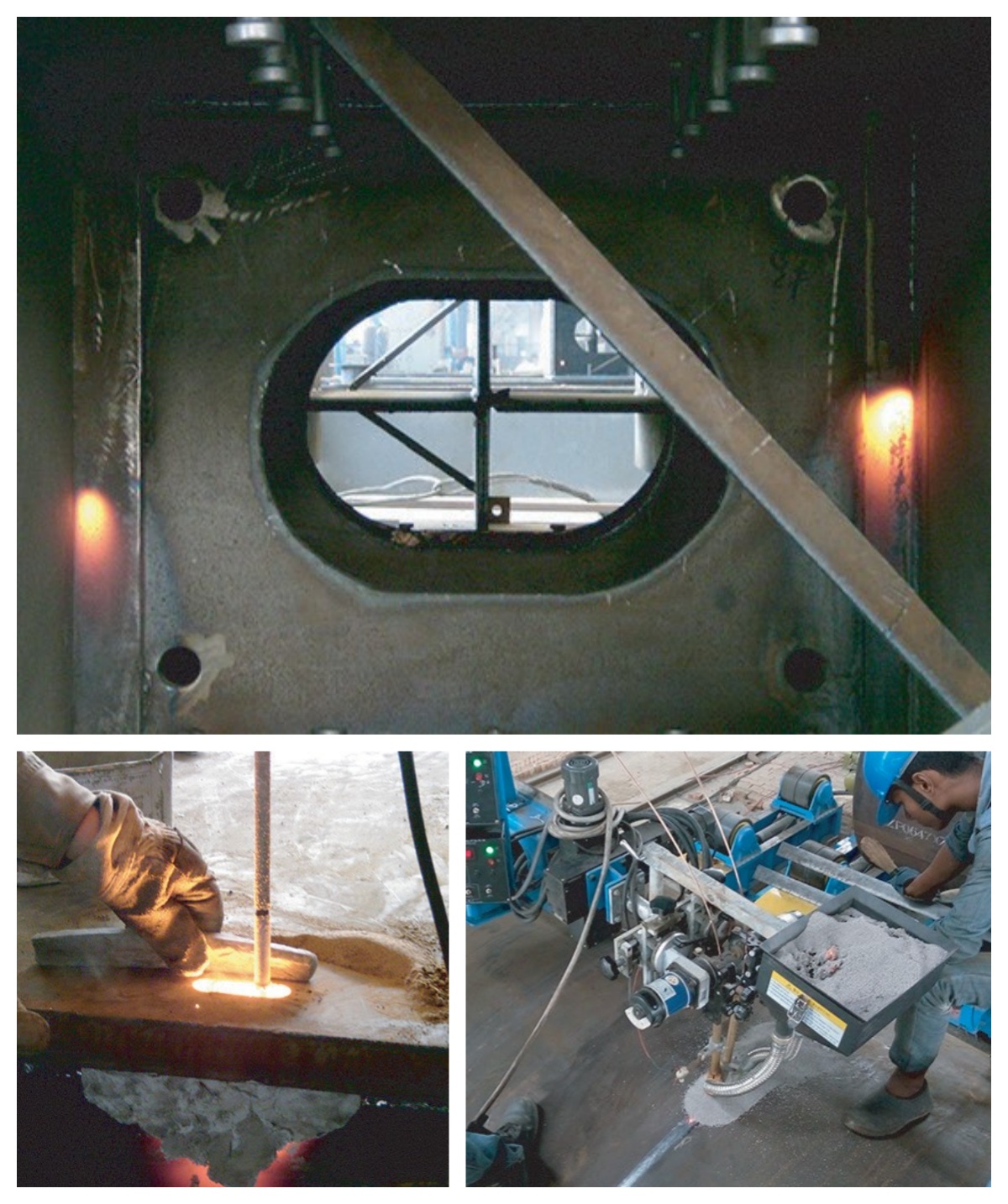

Wire electroslag welding machine is an electroslag welding equipment that uses welding wire as electrode, and the wire is fed into the slag pool through reusable slag, welding torch and conductive nozzle. It is mainly used for efficient welding of vertical welds in steel structures, especially for welding of box-type columns and box-type beam bulkheads. It can weld very thick workpieces at one time, with high welding speed, smooth welding process and not easy to produce spatter, with high deposition rate.
| Trolley for fusion nozzle slag welding | |
| Description | Parameter |
| Capacity of Wire Plate | 25Kg |
| Range of Machine Head Rotating Degree | ±45° |
| Range of Welding Gun Rotating Degree | ±45° |
| Range of Crossbar Rotating Degree | 360° |
| Weight (Welding wire not included) | 50Kg |
| Rated Welding Current | 1250A |
| Column lateral adjustment stroke | 78mm |
| Vertical Head Adjustment Stroke | 100mm |
| Head lateral adjustment stroke | 100mm |
| Crossbeam lift stroke | 170mm |
| Welding Wire diameter | 2/2.4/3.2mm |
| Welding Wire Feeding Speed | 0.4~7.2m per minute |
| Frame Size (L*W*H) | 962*425*976mm |
