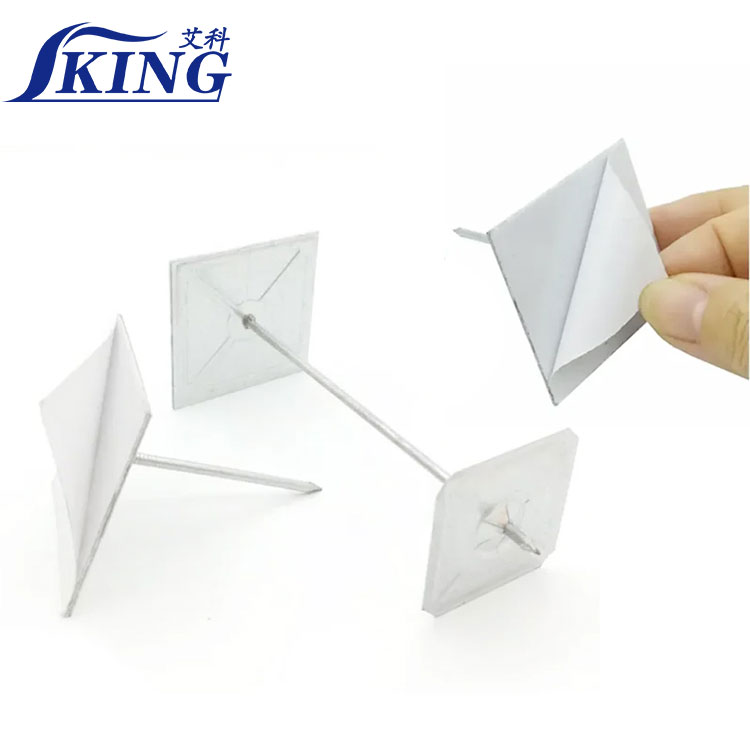

IKING Self Stick Insulation Pins Factory Direct

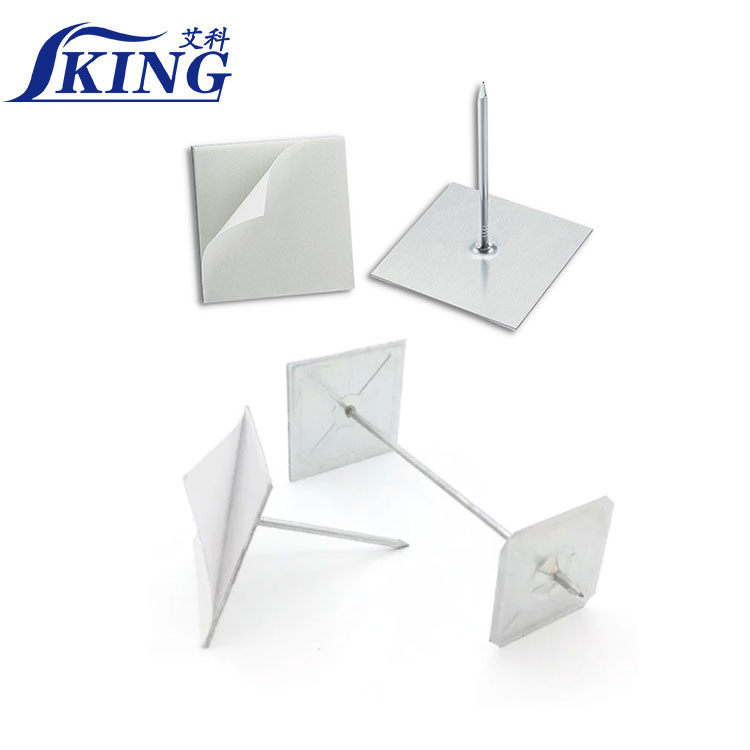

IKING Heavy-Duty Self Stick Insulation Pins (Self Adhesive Insulation Hangers) deliver a fast, tool-free solution for securing thermal wraps and acoustic liners to sheet metal ductwork. Built with a 2" x 2" (50mm x 50mm) zinc-plated steel base and temperature-resistant foam adhesive tape, these duct sticker pins eliminate the need for heavy welding gear or messy glues—saving time and labor on active job sites.

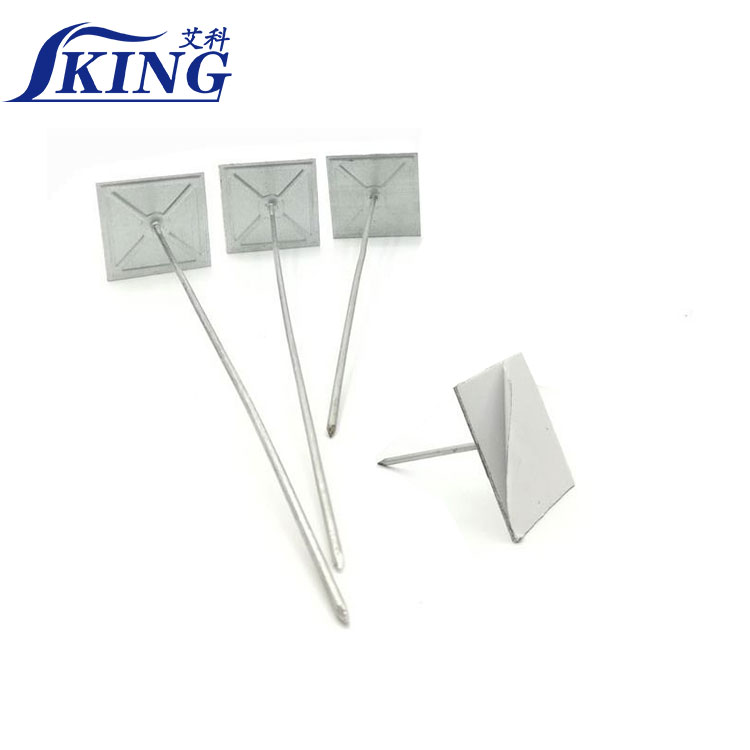

IKING Self Stick Insulation Pins (Self Adhesive Insulation Hangers)
Putting up duct liner with traditional weld pins always creates hassle on active job sites. Dragging bulky CD welders around, running long extension leads, and dealing with burn marks on hot-dip galvanized metal just slows your crew down. IKING self stick insulation pins turn that entire workflow into a straightforward peel-and-press job. On most field sites, workers simply call them self-adhesive insulation hangers, duct sticker pins, or a sticker pin for duct work. Whatever your team names them, they hold insulation tightly in place without touching a welder or slathering liquid glue around.
Technical Specifications Table
| Parameter | Specification |
| Base Size | 2" x 2" (50mm x 50mm) Zinc-Plated Steel |

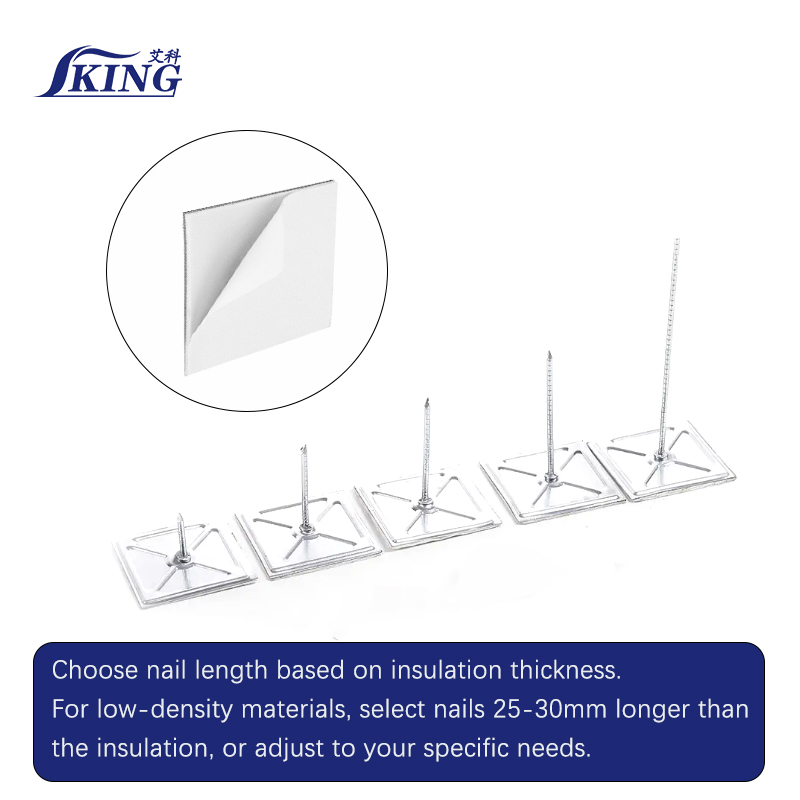

| Spindle Length | 1" to 8"+ (Customizable) |
| Material | High-Zinc Galvanized Steel Base / Aluminum or Steel Spindle |
| Adhesive Tape | High-tack Double-Sided Foam Tape |
| Temperature Range | -40°C to +80°C (-40°F to 176°F) |
| Accessories Included | Self-locking washers (Dome caps available upon request) |
Built for Harsh Jobsite Realities
Every pin leaving our shop uses a heavy 2" x 2" (50mm x 50mm) zinc-plated steel base lined with an industrial foam adhesive backing. We adjusted our adhesive blend so the tape bites into bare, chilled, or prepainted sheet metal the moment you push it into position.
Here is why contractors use them on HVAC runs:
-

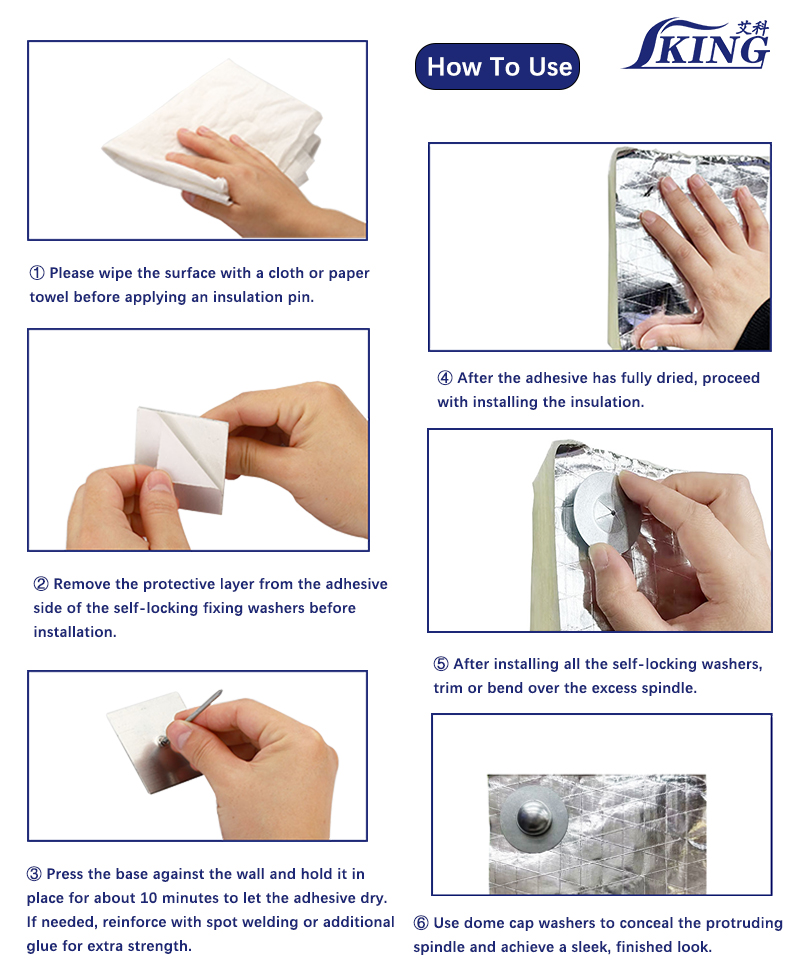

No tools needed: Peel off the backer, press the base down hard, push your fiberglass wrap through, and snap the washer on. Your crew can cover way more square footage in an afternoon, saving real money on labor.
-
Stays stuck through heat and cold: The double-sided foam tape holds tight from -40°C clear up to +80°C. You won't get call-backs about sagging mineral wool or lining peeling off inside air handlers six months down the road.
-
Stops rust before it starts: High-zinc plating on the steel base (and ductile aluminum or steel for the spindle) means moisture and duct condensation won't cause ugly rust spots on the insulation facing.
-

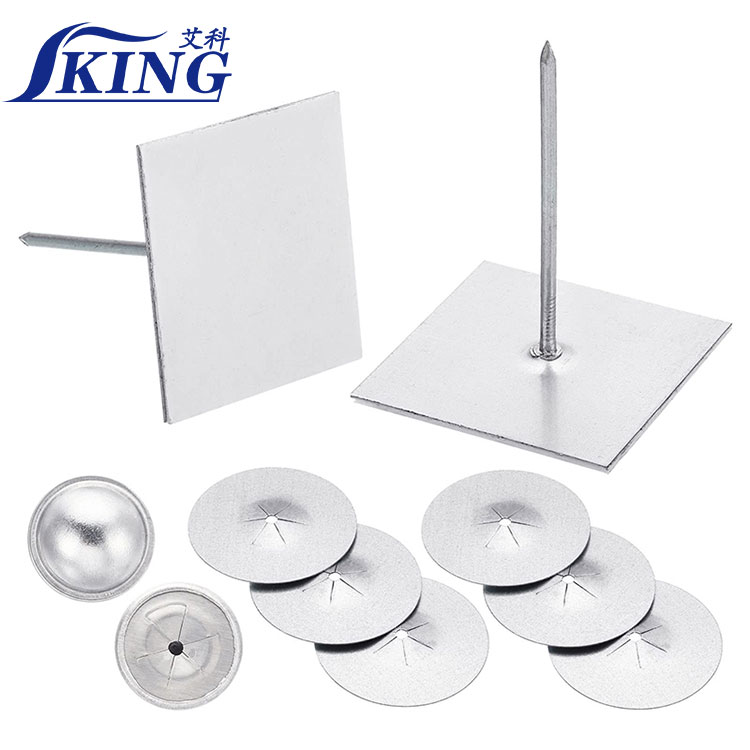

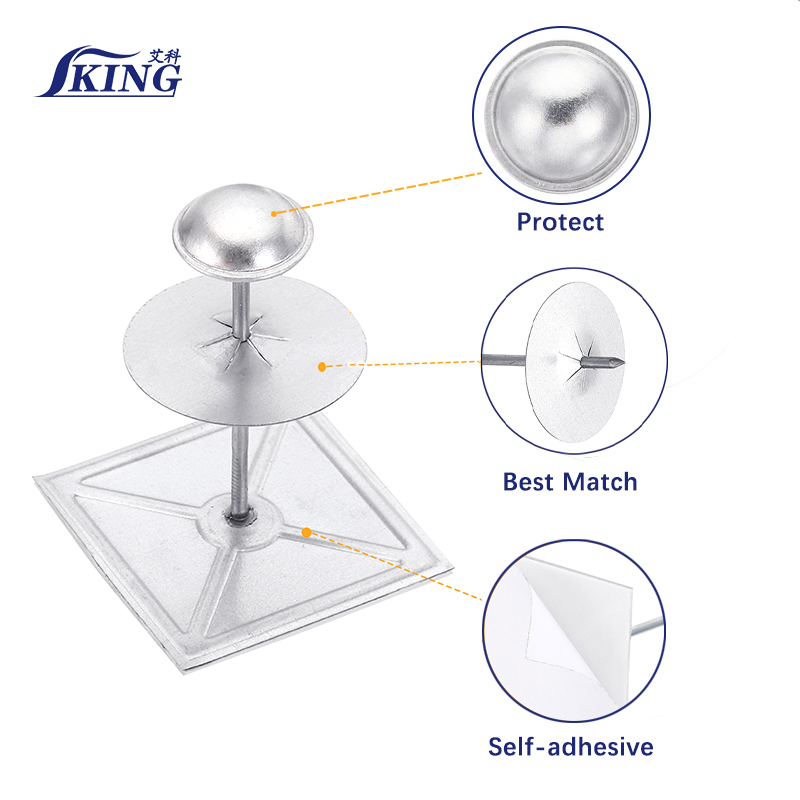

Safety caps included: Every batch comes with locking washers. We can also throw in soft plastic dome caps to cover the sharp cut ends so maintenance techs don't get snagged later.
Factory-Direct & Custom Orders
Because we run our own manufacturing lines, IKING isn't just reselling standard stock boxes. If your submittal calls for weird spindle lengths (anything from 1 inch to 8+ inches), thick wire gauges, or custom distributor packaging, we can run them straight off our factory floor.
