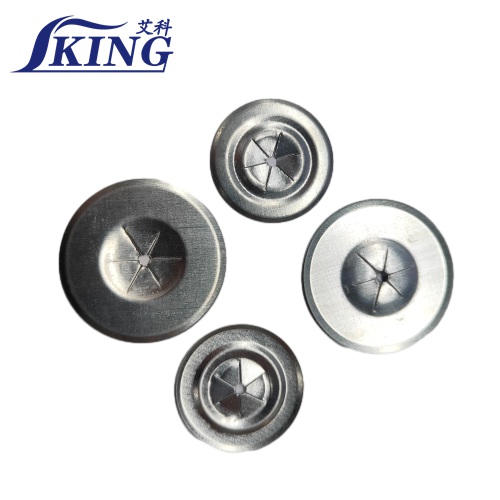

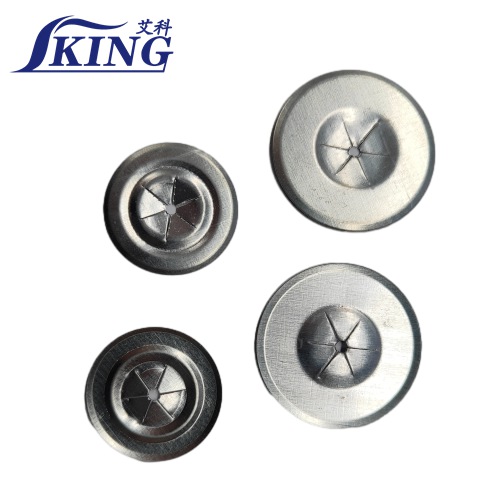

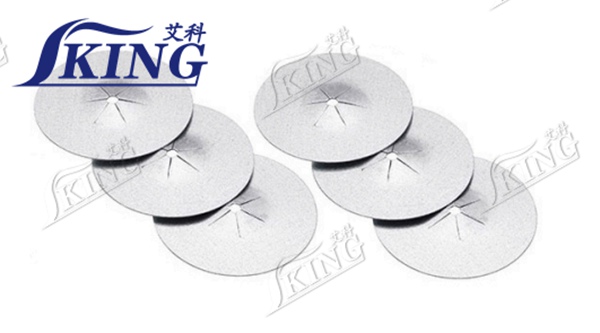

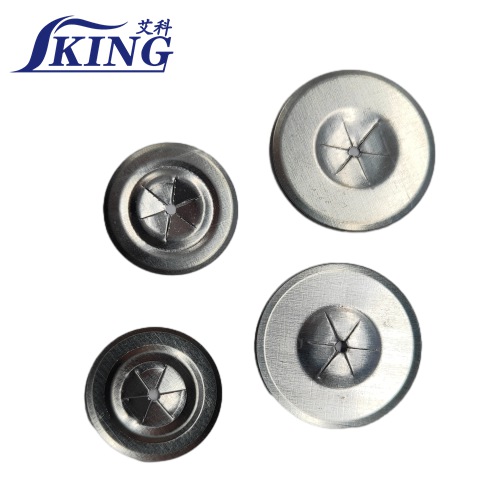

IKING Round Self-Locking Washers for Insulation Pins
Round Self-Locking Washers are engineered to quickly and securely fasten insulation materials over insulation pins, weld pins, and lacing anchors. Manufactured from high-grade galvanized steel or stainless steel, these speed clips provide reliable holding power across HVAC, ductwork, and industrial thermal insulation applications.
-
Fastening Type: Mechanical Positive Self-Locking
-
Material Options: Galvanized Steel / Stainless Steel (SS304/SS316) / Aluminum
-
Compatibility: CD Weld Pins, Perforated Base Pins, Self-Adhesive Pins, Lacing Anchors
-

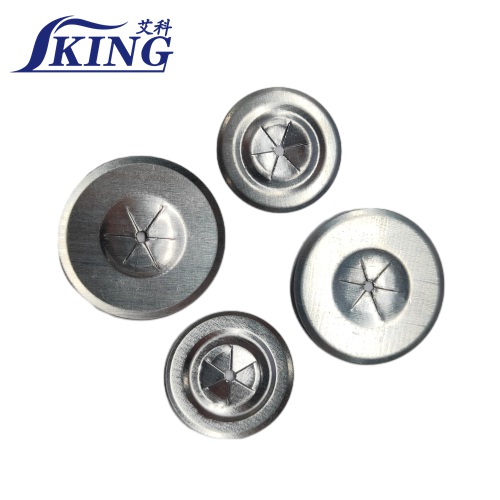

Customization: Custom diameters, gauge holes, and thicknesses available
Product Overview
IKING Round Self-Locking Washers are designed to secure thermal and acoustic insulation materials over insulation pins, weld pins, and lacing anchors. Once the insulation material is positioned over the pin, the washer is pressed manually or with a simple tool onto the spindle. The multi-lanced center hole grips the pin securely, establishing a quick, permanent, and vibration-resistant mechanical hold.
Designed to Match Your Fastening Systems
Our round washers are precision-stamped to fit all standard insulation pin diameters cleanly:
| Insulation Fastener Type | Recommended Pin Diameter | Compatible Washer Type |
|---|---|---|
| CD Weld Pins | 10 GA (3.4mm) / 12 GA (2.7mm) / 14 GA (2.0mm) | Round Self-Locking Washer |
| Perforated Base Pins | 12 GA (2.7mm) / 14 GA (2.0mm) | Round Self-Locking Washer |
| Self-Adhesive Insulation Pins | 12 GA (2.7mm) | Round Self-Locking Washer |
| Lacing Anchors | 12 GA (2.7mm) / 14 GA (2.0mm) | Round Self-Locking Washer |

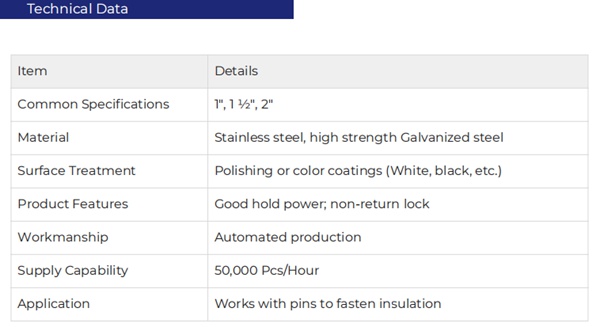

Product Specifications
Main Applications

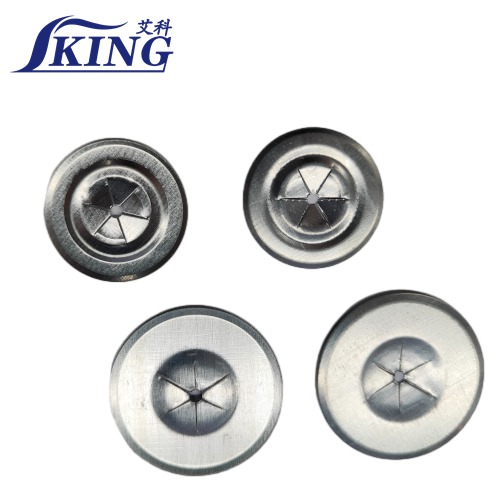

- HVAC Ductworks: Securing glass wool and rock wool insulation blankets to sheet metal ducts.
- Industrial Cladding & Tanks: Securing high-temperature insulation materials in boilers, vessels, and piping.

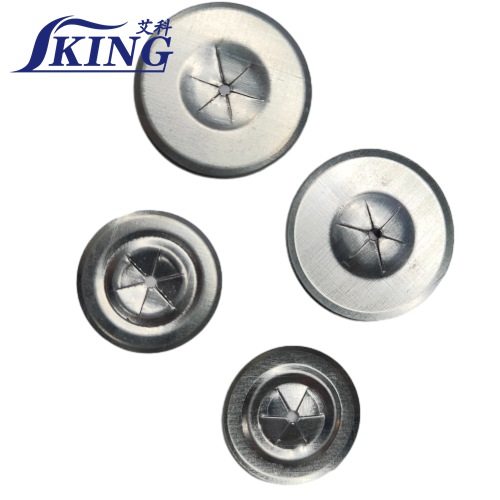

- Acoustic Panels: Fixing sound-insulation mats inside marine, generator, and architectural enclosures.
- Shipbuilding & Marine Insulation: Heavy-duty stainless steel washers for high-corrosion offshore environments.
Key Features & Advantages
- Positive Self-Locking Grip: Specially designed inner lanced tabs tightly clip onto pins to prevent slacking or sliding under vibration.
- Corrosion Resistance: Offered in premium galvanized zinc-plated steel or high-grade stainless steel to ensure durability in humid or harsh environments.
- Safe & Flush Finish: Smooth outer edge distribution protects insulation jacketing and prevents installation hazards.
- High Installation Efficiency: Instant press-fit application without requiring complex tools or additional adhesives.
- Complete System Compatibility: Seamlessly matches with IKING CD weld pins, self-adhesive insulation pins, and lacing anchors.
Why Choose IKING Factory?
- In-House Precision Stamping: We maintain total control over raw steel quality, hole tolerances, and edge finish to ensure consistent clipping pressure.
- Flexible OEM / ODM Production: Custom hole sizes, special outer diameters, logo stamping, and retail packing are available upon request.
- One-Stop Insulation Fastening Supplier: Save on sourcing costs by ordering self-locking washers together with weld pins, insulation anchors, and stud welding equipment directly from our production lines.
Frequently Asked Questions (FAQ)
Q1: What hole size washer do I need for my insulation pins?
A: The hole size must match the gauge/diameter of your pin. Common sizes include 12 GA (2.7mm) for standard self-adhesive pins and 10 GA (3.4mm) for heavy-duty weld pins.
Q2: What is the difference between Galvanized and Stainless Steel washers?
A: Galvanized steel is cost-effective and suitable for standard indoor HVAC applications. Stainless steel (SS304/SS316) provides superior corrosion resistance for outdoor, chemical, marine, or high-temperature environments.
Q3: Can I request samples before placing a bulk order?
A: Yes, IKING provides free standard samples for quality testing and pin fitment check.
Request a Factory Quotation
Looking for reliable self-locking washers for your insulation projects? Send us your required diameter, gauge size, material grade, and estimated order quantity. Our engineering sales team will respond within 12 hours with tech specs and competitive factory direct pricing!
